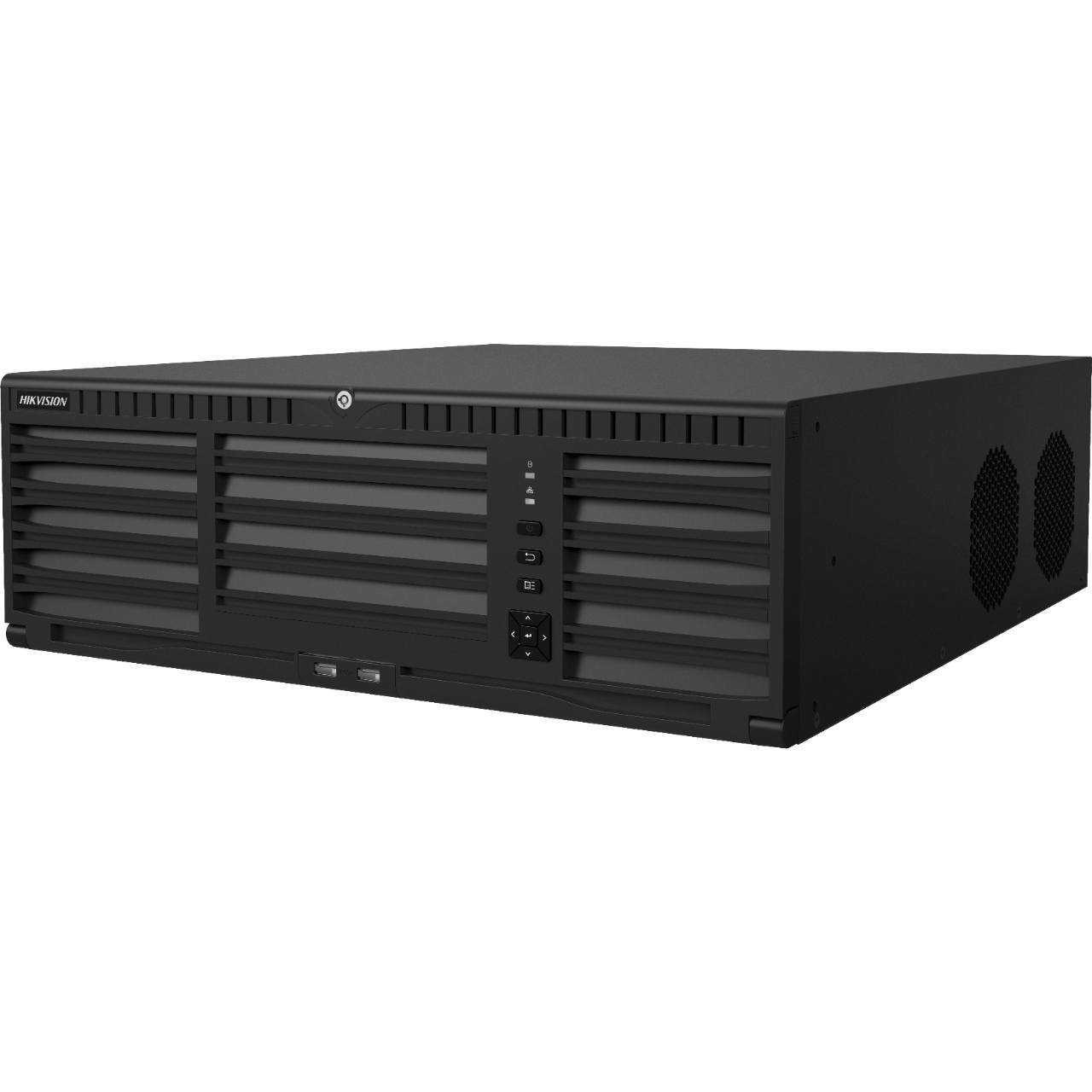

Đầu ghi hình

DS-96256NI-I16

Chuẩn nén hình ảnh: H.264/H.264+/H265/H265+.

Hỗ trợ RAID 0, 1, 5, 6, 10.

Tương thích với tín hiệu ngõ ra HDMI (2 cổng) và VGA 1080P.

Hỗ trợ 256 kênh, 768Mbps Bit Rate input Max.

Xem thêm

📞Tư vấn mua hàng: 0908 070 691

Mô tả

Video And Audio
IP Video Input256-ch
Incoming Bandwidth (RAID Mode)768 Mbps
Outgoing Bandwidth768 Mbps
Incoming Bandwidth768 Mbps
Outgoing Bandwidth (RAID Mode)768 Mbps
TLS Outgoing Bandwidth128 Mbps, or 64 Mbps (when RAID is enabled)
HDMI OutputTwo independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
VGA Output1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
LCD OutputOptional: One 7 inch LCD
Audio Output1-ch. RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding
Decoding FormatH.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
Recording Resolution12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous PlaybackUp to 16 channels
Decoding Capability3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps)

Network
Network ProtocolIPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Camera Access ProtocolHIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
Network Interface4, RJ45 10M/100M/1000M self-adaptive Ethernet interface

PoE
Interface16 SATA interfaces supporting hot-plug

RAID
RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10

Auxiliary Interface
SATA2 × mini SAS interface (optional)
ESATA1 × eSATA interface
CapacityUp to 10 TB for each HDD
Serial InterfaceRS-232; RS-485; Keyboard
USB InterfaceFront Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
Alarm In/Out16/8
Extension BoardOne extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.

General
Power Supply100 to 240 VAC, 50 to 60Hz, 5 A
Consumption≤ 140W
Working Temperature0 °C to + 50 °C (32 °F to 122 °F)
Working Humidity10% to 90%
Dimension (W × D × H)442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch)
≤ 16 kg (35.3 lb)
