Đầu ghi hình

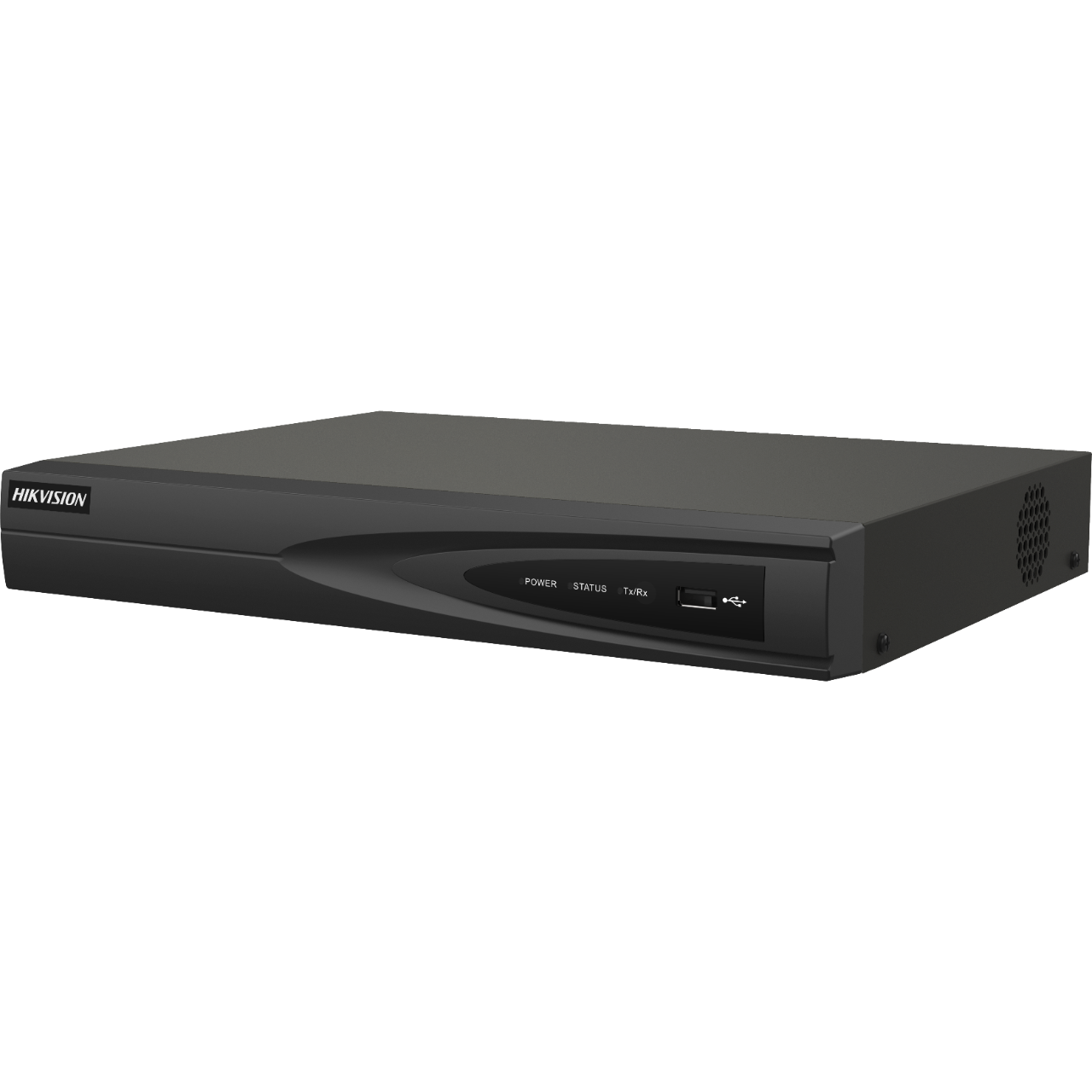

DS-7616NI-K1

📞Tư vấn mua hàng: 0908 070 691

Mô tả
Thông tin bổ sung

16-ch 1U 4K NVR

Up to 16-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
Up to 160 Mbps incoming bandwidth

Motion Detection 2.0
Human/Vehicle Analysis4-ch

Video and Audio
IP Video Input16-ch
HDMI Output1-ch, 4K（4096x2160）/30Hz，4K (3840×2160) /30Hz, 2K（2560×1440）/60Hz，1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
VGA Output1-ch, 1920*1080/60Hz，1280*1024/60Hz，1280*720/60Hz
Incoming Bandwidth160 Mbps
Outgoing Bandwidth80Mbps
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding FormatH.265+/H.265/H.264+/H.264
Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Synchronous playback16-ch
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network
Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
InterfaceN/A

Auxiliary Interface
SATA1 SATA interface
CapacityUp to 8TB capacity for each disk
USB Interface2 × USB 2.0

General
Power Supply12 VDC, 1.5 A
Consumption≤ 10 W
Working Temperature-10 to +55º C (+14 to +131º F)
Working Humidity10 to 90 %
Dimension (W × D × H)320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
≤ 1 kg (2.2 lb)
