Fisheye

DS-2CD2955FWD-I

📞Tư vấn mua hàng: 0908 070 691

Mô tả
Thông tin bổ sung

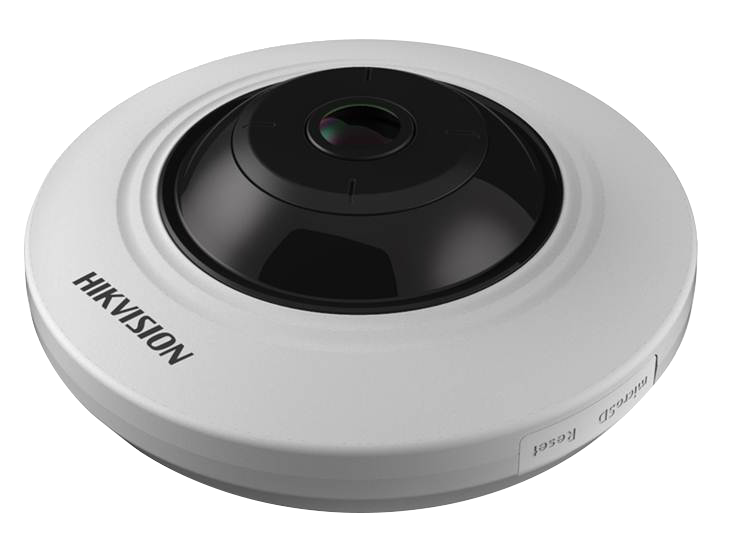

5 MP Fisheye Fixed Dome Network Camera

High quality imaging with 5 MP resolution
180° fisheye view
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology.

Camera
Image Sensor1/2.5" Progressive Scan CMOS
Max. Resolution2560 × 1920
Min. IlluminationColor: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter with auto switch

Lens
Focal Length & FOV1.05 mm, horizontal field of view: 180°, vertical field of view: 180°
ApertureF2.2
Lens MountM12

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 8 m

Video
Main Stream50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960),60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960),
Sub-Stream50Hz: 25fps (352× 288, 704 × 576),60Hz: 30fps (352 × 240, 704 × 576),
Video Compression
Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream

Fisheye Display
Mount Type Support table, wall, and ceiling
Display Mode
Support 14 display modes in total (including display modes of different mount types):
Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Audio
Audio Sampling Rate-S: Support
Environment Noise Filtering-S: 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression -S: G.711/G.722.1/G.726/MP2L2/PCM, 8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Bit Rate-S: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network
Network StorageNAS (Support NFS,SMB/CIFS), built-in microSD/SDHC/SDXC card slot, up to 128 G, ANR
APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Wide Dynamic Range (WDR)120 dB
Day/Night SwitchAuto/Schedule/Triggered by Alarm In (-S model supports)
Image EnhancementWDR/3D DNR/Backlight Compensation/Defog/Distortion Correction
Image SettingsSaturation, brightness, contrast, and sharpness are adjustable via client software or web browser

Interface
Audio-S: 1 audio input (line in), 1 audio output interface
Alarm -S: 1 alarm input, 1 alarm output (12 VDC, max. 30 mA)
On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 G
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event
Basic Event Motion detection, dynamic analysis, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
LinkageTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email

General
Power DC 12V ± 25%, 2A, 5W,PoE(802.3af 36-57V, class 3), 0.4 – 0.7 A, 6.7W,
DimensionΦ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)
Startup and Operating Conditions-10 °C to +50 °C (-14 °F to +122 °F). Humidity 95% or less (non-condensing)
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
600 g (1.32 lbs.)
