Đầu ghi hình

DS-7108NI-Q1/8P

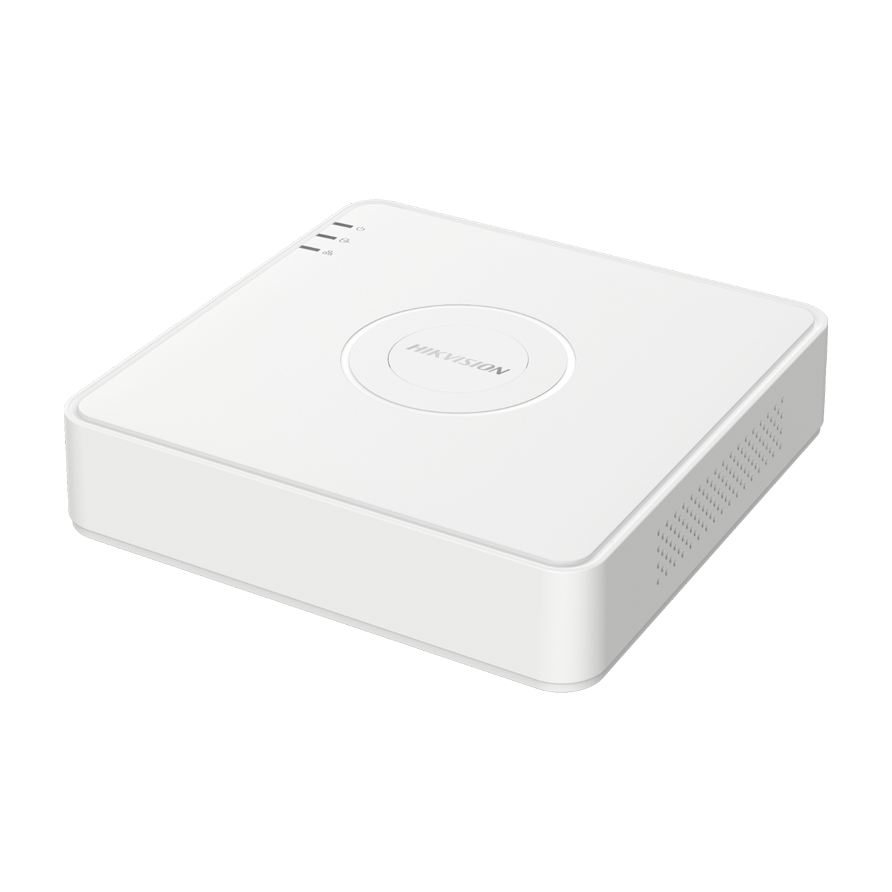

Hikvision DS-7108NI-Q1/8P 8-ch Mini 1U 8 PoE NVR

Xem thêm

📞Tư vấn mua hàng: 0908 070 691

Mô tả
Thông tin bổ sung

8-ch Mini 1U 8 PoE NVR

H.265+/H.265/H.264+/H.264 video compression
Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
Up to 8-ch network camera inputs
Up to 4-ch 1080p decoding capability
HDMI and VGA simultaneous output

Video and Audio
IP Video Input
8-ch
Up to 4 MP resolution
Incoming Bandwidth60 Mbps
Outgoing Bandwidth60 Mbps
HDMI Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output ModeHDMI/VGA simultaneous output

Decoding
Decoding FormatH.265+/H.265/ H.264+/H.264
Recording Resolution4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback8-ch
Decoding Capability4-ch@1080p (25 fps), 2-ch@4 MP (25 fps)
Stream TypeVideo, Video & Audio

Network
Remote Connection16
Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
Network Interface1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE
Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 75 W
StandardIEEE 802.3 af/at

Auxiliary Interface
SATA1 SATA interface
CapacityUp to 6TB capacity for each disk
Alarm In/OutN/A
USB InterfaceRear panel: 2 × USB 2.0

General
Power Supply48 VDC, 1.8 A
Consumption≤ 10 W
Working Temperature-10 to +55º C (+14 to +131º F)
Working Humidity10% to 90%
Dimension (W × D × H)
285 × 210 × 48 mm(11.2" × 8.3\" × 1.9\")
≤ 1 kg (2.2 lb)

Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN50130-4, EN 61000-3-2,EN 61000-3-3
