Đầu ghi hình

DS-9664NI-I8

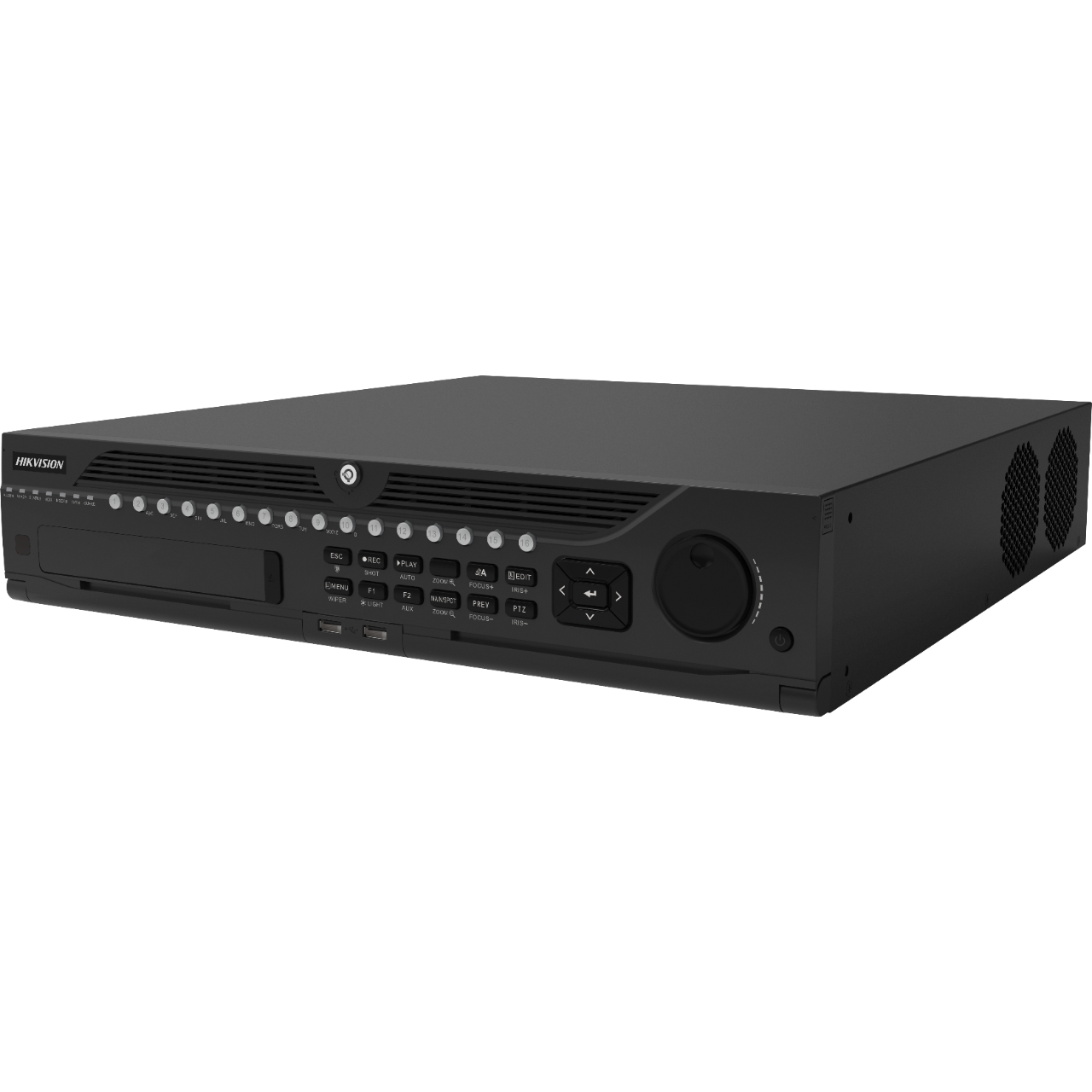

Hikvision DS-9664NI-I8 64-ch 2U 4K NVR

Xem thêm

📞Tư vấn mua hàng: 0908 070 691

Mô tả
Thông tin bổ sung

64-ch 2U 4K NVR

Up to 64 channel IP cameras can be connected
Up to 12 MP high-definition live view, storage and playback
Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
2 HDMI (different source) and 2 VGA (different source) interfaces
8 HDD can be used for continuous video recording
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Video and Audio
IP Video Input
64-ch
Up to 12 MP resolution
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Incoming Bandwidth320 Mbps
Outgoing Bandwidth256 Mbps
Incoming Bandwidth (RAID Mode)200 Mbps
Outgoing Bandwidth (RAID mode)200 Mbps
HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 1 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding
Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Synchronous playback16-ch
Decoding Capability1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
Dual-Stream RecordingSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network
Remote Connection128
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID
RAID TypeRAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)

Auxiliary Interface
Serial Interface1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
SATA8 SATA interfaces supporting hot-plug
eSATA1 eSATA interface
CapacityUp to 10TB capacity for each disk
Alarm In/Out16/4
USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption≤ 30 W
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Chassis3U chassis
Dimension (W × D × H)445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")
≤ 10 kg (22 lb)

Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
