Đầu ghi hình

DS-7632NI-K2/16P

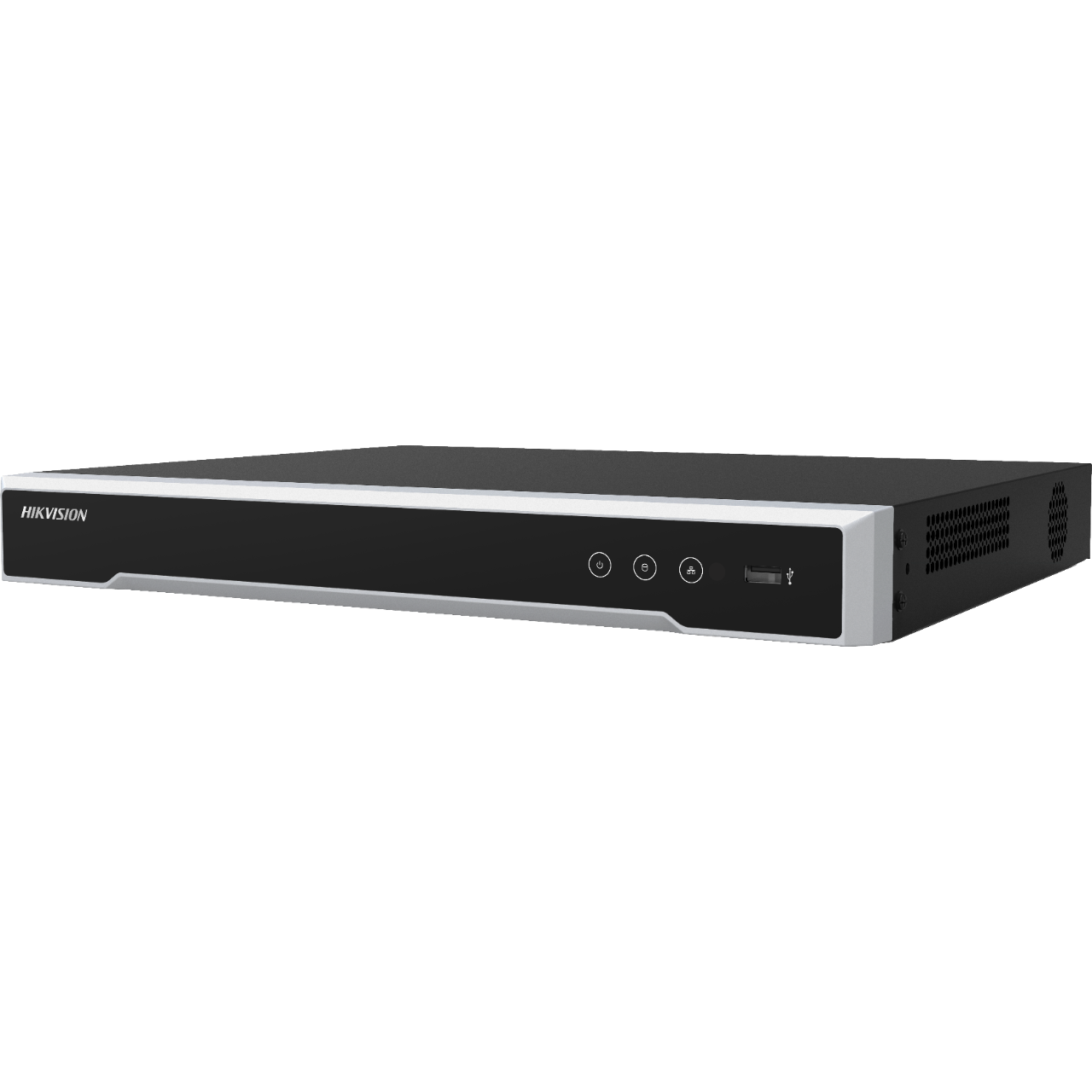

Hikvision DS-7632NI-K2/16P 32-ch 1U 16 PoE 4K NVR

Xem thêm

📞Tư vấn mua hàng: 0908 070 691

Mô tả
Thông tin bổ sung

32-ch 1U 16 PoE 4K NVR

Up to 32-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
 Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
1 HDMI and 1 VGA interfaces: both interfaces support independent video output
2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
Up to 256 Mbps incoming bandwidth
Plug-and-play with 8 power over Ethernet (PoE) interfaces

Video and Audio
IP Video Input32-ch
Incoming Bandwidth256 Mbps
Outgoing Bandwidth160 Mbps
HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output ModeHDMI/VGA independent output
Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding
Decoding FormatH.265/H.265+/H.264/H.264+
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback16-ch
Decoding Capability1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

Network
Remote Connection128-ch
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power≤ 200 W
StandardIEEE 802.3 af/at

Auxiliary Interface
SATA2 SATA interfaces
CapacityUp to 10 TB capacity for each HDD
USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out4/1

General
Power Supply100 to 240 VAC, 50 to 60Hz
Consumption≤ 15 W (without HDD and PoE off)
Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10 to 90 %
Dimension (W × D × H)385 × 315× 52 mm (15.2" × 12.4" × 2.0")
≤ 3 kg (without HDD, 6.6 lb.)

Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
