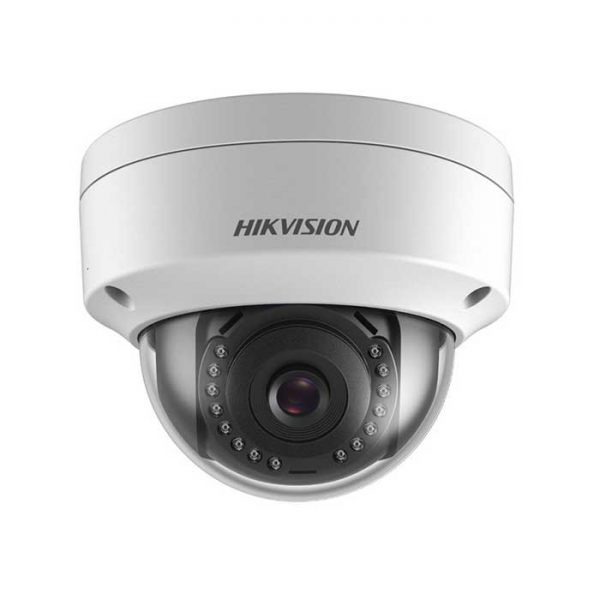

Dome

DS-2CD1123G0E-ID

• Cảm biến 1/2.8″ progressive Scan CMOS

• Độ phân giải 1920×1080@30fps

• Ống kính cố định 2.8mm(đặt hàng 4mm)

• Độ nhạy sáng 0.028Lux@F2.0

• Hồng ngoại 30m

• DWDR, BLC, 3D DNR

• Nguồn 12VDC

Xem thêm

📞Tư vấn mua hàng: 0908 070 691

Mô tả

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100, 000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°

Lens
Focal Length & FOV
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
4 mm, horizontal FOV 90.2°, vertical FOV 48.6°, diagonal FOV 107.6°
Lens MountM12
FocusFixed
ApertureF2.0

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
IR Wavelength850 nm

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main Stream: H.265/H.264/H.264+/H.265+
Sub-Stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region Of Interest (ROI)1 fixed region for main stream

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic EventMotion detection, video tampering alarm, exception
LinkageUpload to FTP, notify surveillance center, send email

General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
MaterialMetal & Plastic
DimensionØ110 mm × 82.4 mm (Ø4.4" × 3.2")
Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Approx. 410 g (0.9 lb.)
With Package WeightApprox. 610 g (1.3 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
Safety
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
Environment
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013)
IK10 (IEC 62262:2002)
