Fisheye

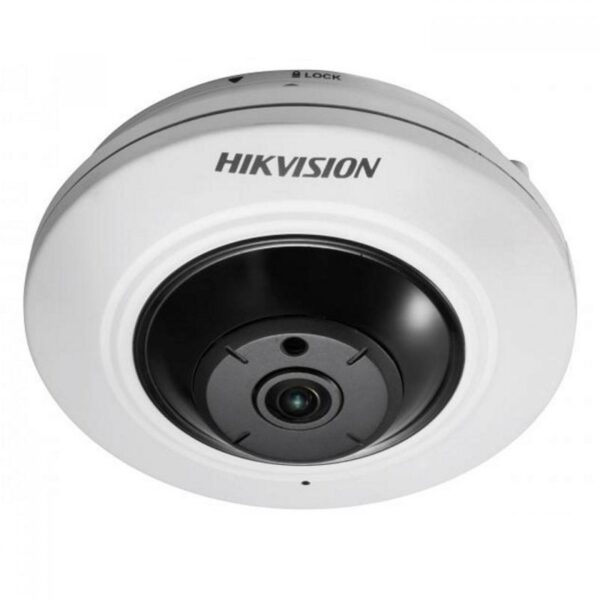

DS-2CD2935FWD-IS

  • • Cảm biến 1/2.8″ Progressive Scan CMOS 2048×1536@30fps
    • Độ nhạy sáng 0.005Lux @ (F1.2, AGC ON)
    • Hồng ngoại EXIR tầm xa 8m
    • Bộ lọc hồng ngoại chế độ ngày đêm (ICR), BLC, tự động bù sáng (AGC), 120dB WDR, chống nhiễu 3D DNR
    • 12 VDC ± 25%, PoE (802.3af)
    • Φ119.9×41.2mm, 600g
    • Chuẩn ngâm nước IP67, Khe cắm thẻ nhớ 128GB
    • Xem thêm
    📞Tư vấn mua hàng: 0908 070 691
    • Camera
    • Image Sensor1/2.8" Progressive Scan CMOS
    • Min. IlluminationColor: 0.005Lux @ (F1.2, AGC ON), 0.017Lux @ (F2.2, AGC ON), 0 Lux with IR on
    • Shutter Speed1/3 s to 1/100,000 s
    • Slow ShutterYes
    • Wide Dynamic Range120dB
    • Day & NightIR Cut Filter
    • Lens
    • FocusFixed
    • FOV1.16 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180°
    • Lens MountM12
    • Illuminator
    • IR RangeUp to 8 m
    • Video
    • Max. Resolution2048 × 1536
    • Main Stream50Hz:25fps (2048 × 1536, 1600 × 1200, 1280 × 960),60Hz:30fps (2048 × 1536, 1600 × 1200, 1280 × 960),
    • Sub Stream50Hz: 25fps (352 × 288, 704 × 576),60Hz: 30fps (352 × 240, 704 × 576),
    • Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,
    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 TypeMain Profile/High Profile
    • H.265 TypeMain Profile
    • H.264+Support
    • H.265+Support
    • Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream
    • Audio
    • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
    • Network
    • Simultaneous Live ViewUp to 6 channels
    • APIONVIF (PROFILE S, PROFILE G), ISAPI
    • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
    • User/HostUp to 32 users,3 levels: Administrator, Operator and User,
    • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
    • Network StorageNAS (Support NFS,SMB/CIFS), built-in microSD/SDHC/SDXC card slot, up to 128 G, ANR
    • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
    • Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+,
    • Alarm TriggerVideo tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
    • Image
    • Day/Night SwitchAuto/Schedule/Triggered by Alarm In (-S model supports)
    • DNR3D DNR
    • Distortion CorrectionSupport
    • Image EnhancementWDR/3D DNR/Backlight Compensation/Defog
    • Image SettingsSaturation, brightness, contrast, and sharpness are adjustable via client software or web browser
    • Display ModeSupport 14 display modes in total (including display modes of different mount types):,Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ,
    • Interface
    • Audio1 audio input (line in), 1 audio output interface
    • Alarm 1 alarm input, 1 alarm output (DC24V, 1A or AC110V, 500mA, max.)
    • On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 G
    • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
    • Event
    • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
    • Smart EventLine crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
    • General
    • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
    • Firmware VersionV5.5.52
    • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    • General FunctionOne-key reset, anti-flicker, password protection, privacy mask, IP Address filtering, heartbeat, watermark
    • Startup and Operating Conditions-10 °C to +50 °C (-14 °F to +122 °F), humidity 95% or less (non-condensing)
    • Power SupplyDC 12V ± 25%, 0.4 A, 4.8 W,PoE (802.3af, 36V to 57 V, class 3), 0.4 A to 0.7 A, 6.4 W,
    • Camera DimensionΦ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)
    • Camera Weight600 g (1.32 lb.)
