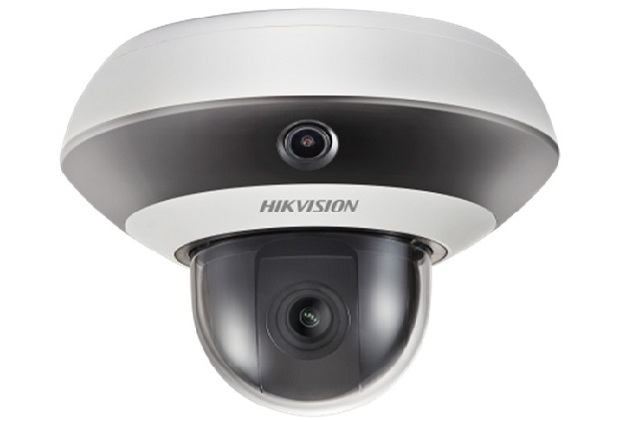

DS-2PT3326IZ

- Cảm biến hình ảnh: 3 camera 1/2.8 inch progressive scan CMOS.

- Độ phân giải: 3-ch 1920 × 1080@30fps.

- Độ nhạy sáng: Color: 0.05 Lux @(F2.0, AGC ON); B/W: 0.01 Lux @(F2.0, AGC ON); 0 Lux with IR.

- Chuẩn nén hình ảnh: H.265.

- Góc quan sát ngang: 128.5°× 3.

PTZ Camera

- Cảm biến hình ảnh: 1/2.8 inch progressive scan CMOS.

- Độ phân giải: 1920 × 1080@30fps.

- Độ nhạy sáng: Color: 0.05 Lux @(F2.0, AGC ON); B/W: 0.01 Lux @(F2.0, AGC ON); 0 Lux with IR.

- Chuẩn nén hình ảnh: H.265

Xem thêm

📞Tư vấn mua hàng: 0908 070 691

Camera
Image Sensor
[panoramic channel]
Three 1/2.8 progressive scan CMOS
[PTZ channel]
1/2.8 progressive scan CMOS"
Min. Illumination
Color: 0.05 Lux @(F2.0, AGC ON)
B/W: 0.01 Lux @(F2.0, AGC ON)
0 Lux with IR
Day &NightIR Cut Filter

Smart Features
Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
Smart DetectionAudio Exception Detection, Intrusion Detection, Line Crossing Detection
Smart RecordANR (Automatic Network Replenishment)
Smart Image EnhancementHLC/BLC/3D DNR/Regional Exposure

Network
Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB

Camera Module
Privacy Mask
[panoramic channel]：4 × 3 programmable privacy masks
[PTZ channel]：8 programmable privacy masks

General
Power Supply
12 VDC, 2.0 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4
Max.24 W (Max. 6 W for IR)
MaterialPC + ABS & Aluminum alloy
DimensionsΦ 183 mm × 133.2 mm (Φ 7.20" × 5.24")
Approx. 0.9 kg (1.98 lb)
Protection LevelTVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Working Temperature-10°C to 50°C (14°F to 122°F)
Working Humidity≤ 90%
